PEEK-G1030 pipes are produced by continuous extrusion using polyetheretherketone resin and 30% glass fiber as raw materials. PEEK-G1030 pipe has better rigidity and creep resistance, as well as better dimensional stability, making it ideal for manufacturing structural parts.

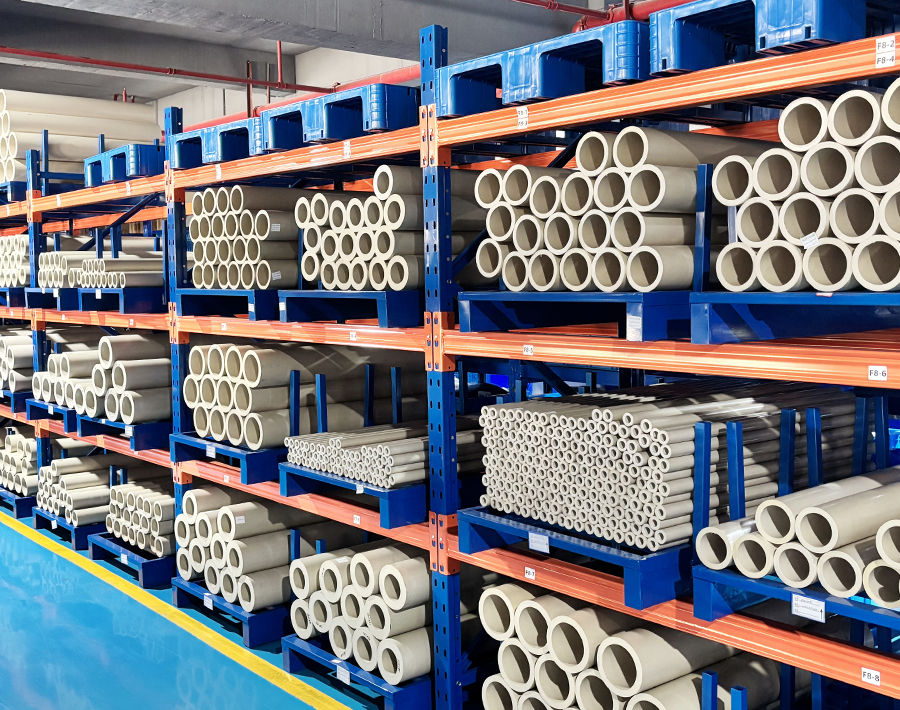

Nanjing Shousu has been focusing on PEEK production and processing for many years, and has the ability to produce PEEK pipes and PEEK rings of different sizes. We produce PEEK tubes and PEEK rings by extrusion molding, compression molding, injection molding and mechanical molding. We can customize the sizes of PEEK tubes and PEEK rings according to the customer's requirements. We maintain a large inventory year-round.
| ODxIDxLength(mm) | Actual OD(mm) | Actual ID(mm) |
|---|---|---|
| 40×20×1000 | 42.0 | 18.0 |
| 45×20×1000 | 46.5 | 18.0 |
| 50×25×1000 | 51.5 | 23.0 |
| 50×35×1000 | 51.5 | 33.0 |
| 55×35×1000 | 57.0 | 33.0 |
| 55×40×1000 | 57.0 | 38.0 |
| 60×40×1000 | 61.5 | 38.0 |
| 63×43×1000 | 64.0 | 44.0 |
| 70×45×1000 | 72.0 | 43.0 |
| 70×50×1000 | 72.0 | 48.0 |
| 80×50×1000 | 82.0 | 48.0 |
| 85×67×1000 | 87.0 | 66.0 |
| 90×60×1000 | 92.0 | 58.0 |
| 90×65×1000 | 92.0 | 63.0 |
| 100×75×1000 | 102.0 | 73.0 |
| 100×80×1000 | 102.0 | 78.0 |
| 110×70×1000 | 112.0 | 68.0 |
| 130×100×1000 | 132.0 | 98.0 |
| 130×110×1000 | 132.0 | 108.0 |
| 135×90×1000 | 137.0 | 88.0 |
| 135×95×1000 | 137.0 | 93.0 |
| 135×100×1000 | 137.0 | 98.0 |
| 135×105×1000 | 137.0 | 103.0 |
| 140×115×1000 | 142.0 | 113.0 |
| 140×120×1000 | 142.0 | 118.0 |
| 155×125×1000 | 157.0 | 123.0 |
| 160×140×1000 | 162.0 | 138.0 |
| 165×125×500 | 167.0 | 123.0 |
| 165×135×1000 | 167.0 | 133.0 |
| 175×155×1000 | 177.4 | 153.0 |
| 180×155×1000 | 183.0 | 152.0 |
| 190×160×1000 | 193.0 | 157.0 |
| 200×180×1000 | 203.0 | 178.0 |
| 220×195×1000 | 223.0 | 192.5 |
| 260×220×1000 | 263.0 | 217.0 |
| Other specifications can be customized | ||
Focus on the R&D, design, production and composite modification of special engineering plastics such as PEEK, PI, PPS and PEI.
Have the ability of continuous extrusion molding, injection molding, compression molding, machining molding and other molding processes.
Design, processing, manufacturing and modification of extrusion mold, compression mold and injection mold.

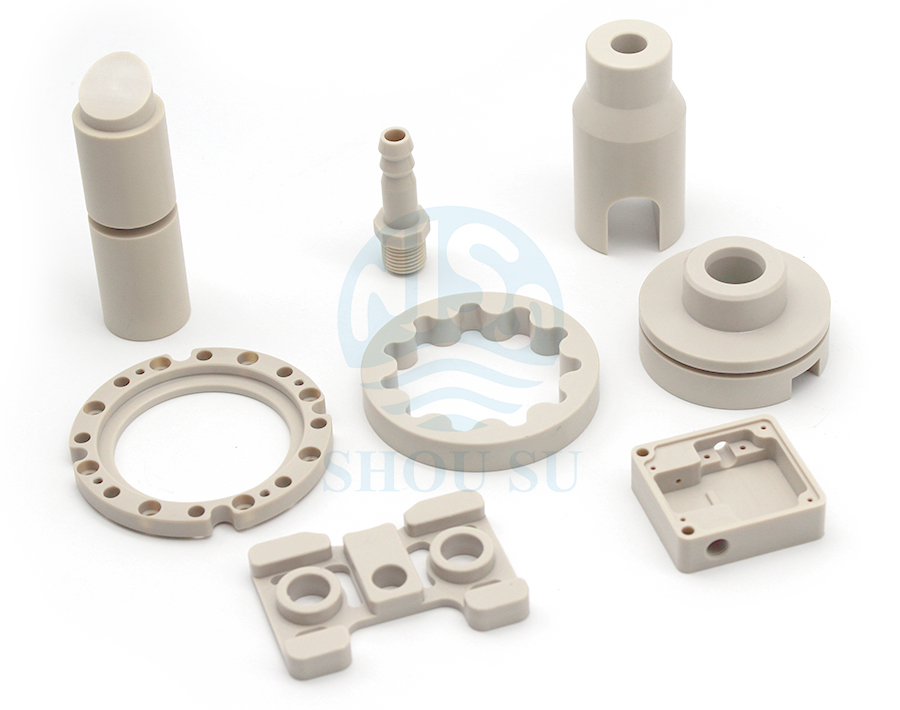

PEEK, PI, PPS, PEI and other parts and products are customized according to drawings and samples.
Continuous extrusion molding of PEEK, PI, PPS and other bars, plates, pipes and sheets.
The research and development and production of new products and fields of special engineering plastics will jointly promote the application of PEEK, PI and other special engineering plastics products in various industries.
